Off-Grid Solar Kits 12kW/15kW/18kW Options 120V/240V with 48v LiFePO4 Lithium Batteries & 415w Solar Panels SGR-18K20E
This Complete Off-Grid Solar Kit comes with what you need to run your home or cabin completely off-grid, or commercial solar system ,it includes the 415W solar panel, 100AH 51.2Vbattery,12-18kw inverter and two set of solar cable and bracket. With 12kw/ 15kw/ 18kw split phase (120/240V) output, the 30KWH of Storage is more than powerful enough to run everything from air conditioners and well pumps to lights, fridge, tv, workshop, office and even light commercial and industrial applications. All for anaffordable price and easily expandable, you can always add more batteries and more solar panels in the future.
What is included with the solar kits!
SGR-15K20E/SGR-18K20E:
★ 1 X 15000/18000 Watt 48V DC 120V/240V AC Output
★ 20 X 415 Watt Monocrystalline Solar Panels
★ 2 X 100A Mppt Solar Charge Controller
★ 6 X 100AH 51.2V Lifepo4 Battery
★ 1 X Enclosed Battery Cabinet
★ 2 Sets X 50 Feet, Solar Extension Cables-Inverter PV input
★ 2 Sets Cable Between Battery and MPPT Controller
★ 20 Sets of Mounting Z-Brackets
★ 1 X 400A DC Breaker
★ 2 X 50A PV BreakerSGR-12K20E:
★ 1 X 12000 Watt 48V DC 120V/240V AC Output
★ 12 X 415 Watt Monocrystalline Solar Panels
★ 5 X 100AH 51.2V Lifepo4 Battery
★ 2 X 100A MPPT Solar Charge Controller
★ 1 X Enclosed Battery Cabinet
★ 2 Sets 50 Feet, Solar Extension Cables-Inverter PV input
★ 2 Sets Cable Between Battery and MPPT Controller
★ 12 Sets Mounting Z-Brackets
★ 1 X 400A DC Breaker
★ 2 X 25A PV Breaker
This Complete Off-Grid Solar Kit comes with what you need to run your home or cabin completely off-grid, or commercial solar system ,it includes the 415W solar panel, 100AH 51.2Vbattery,12-18kw inverter and two set of solar cable and bracket. With 12kw/ 15kw/ 18kw split phase (120/240V) output, the 30KWH of Storage is more than powerful enough to run everything from air conditioners and well pumps to lights, fridge, tv, workshop, office and even light commercial and industrial applications. All for anaffordable price and easily expandable, you can always add more batteries and more solar panels in the future.
What is included with the solar kits!
SGR-15K20E/SGR-18K20E:
★ 1 X 15000/18000 Watt 48V DC 120V/240V AC Output
★ 20 X 415 Watt Monocrystalline Solar Panels
★ 2 X 100A Mppt Solar Charge Controller
★ 6 X 100AH 51.2V Lifepo4 Battery
★ 1 X Enclosed Battery Cabinet
★ 2 Sets X 50 Feet, Solar Extension Cables-Inverter PV input
★ 2 Sets Cable Between Battery and MPPT Controller
★ 20 Sets of Mounting Z-Brackets
★ 1 X 400A DC Breaker
★ 2 X 50A PV BreakerSGR-12K20E:
★ 1 X 12000 Watt 48V DC 120V/240V AC Output
★ 12 X 415 Watt Monocrystalline Solar Panels
★ 5 X 100AH 51.2V Lifepo4 Battery
★ 2 X 100A MPPT Solar Charge Controller
★ 1 X Enclosed Battery Cabinet
★ 2 Sets 50 Feet, Solar Extension Cables-Inverter PV input
★ 2 Sets Cable Between Battery and MPPT Controller
★ 12 Sets Mounting Z-Brackets
★ 1 X 400A DC Breaker
★ 2 X 25A PV Breaker
Wiring Diagram

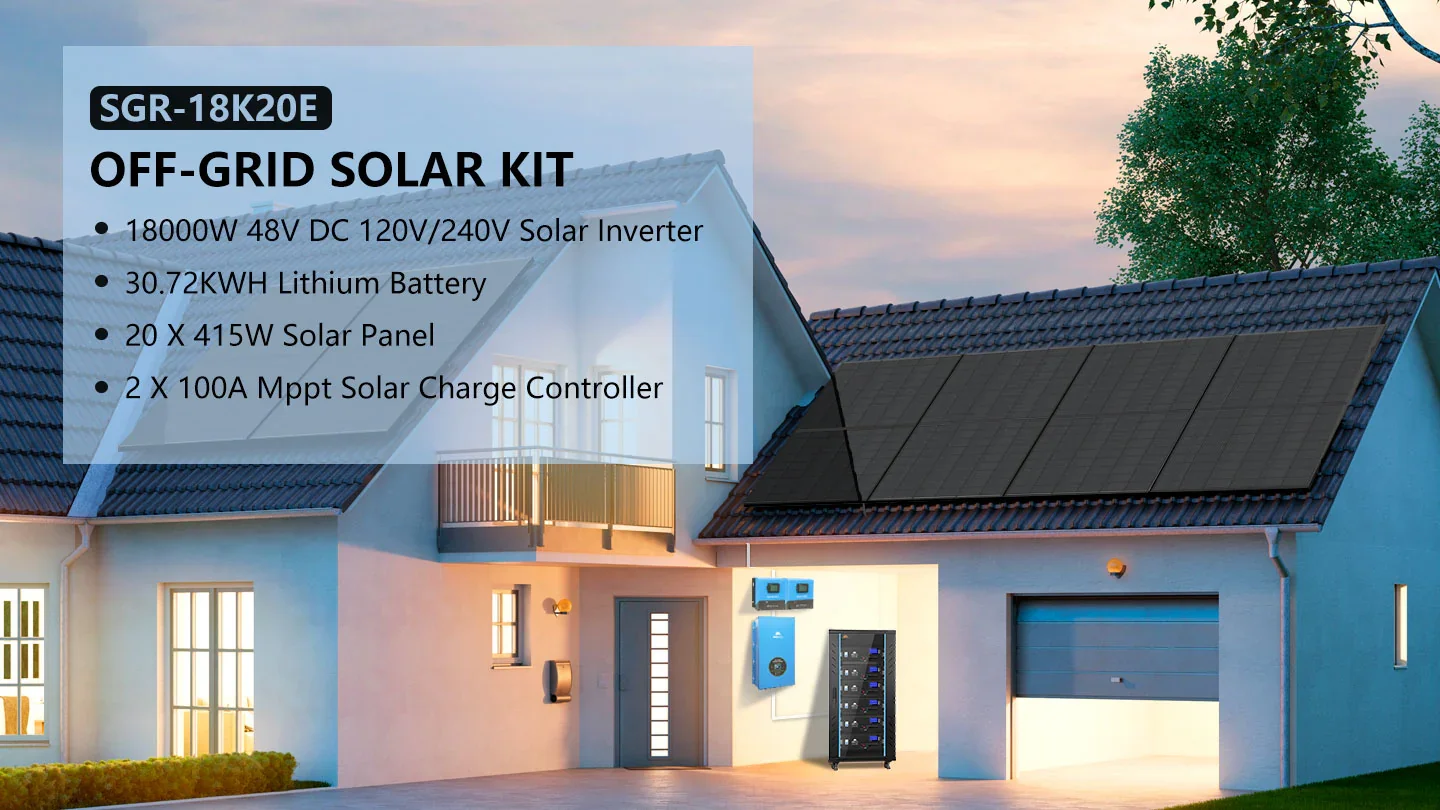

18KW Off Grid Solar Kit Features

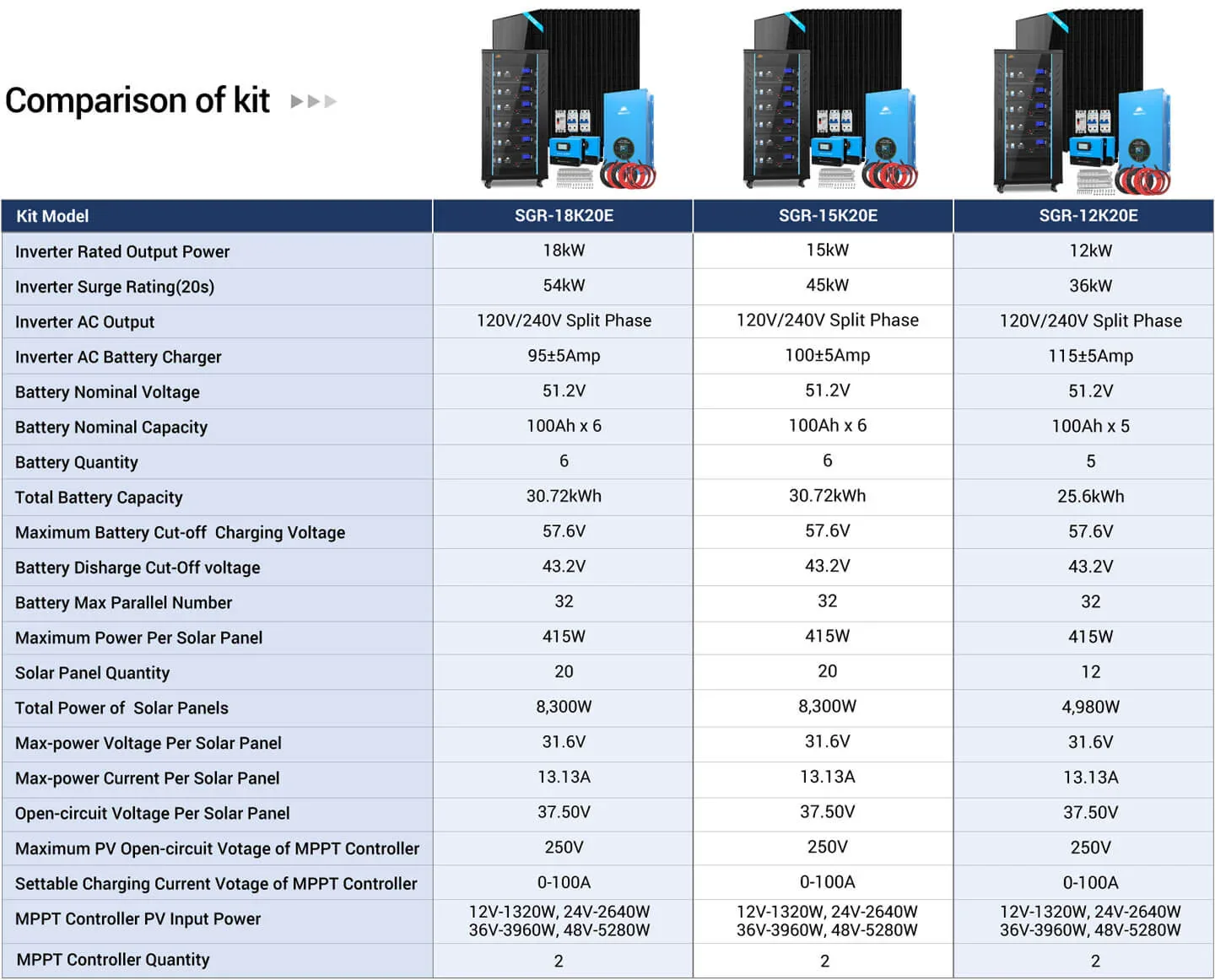

SGR18K20E-SGR15K20E-SGR12K20E Off Grid Solar Kit Comparison Chart

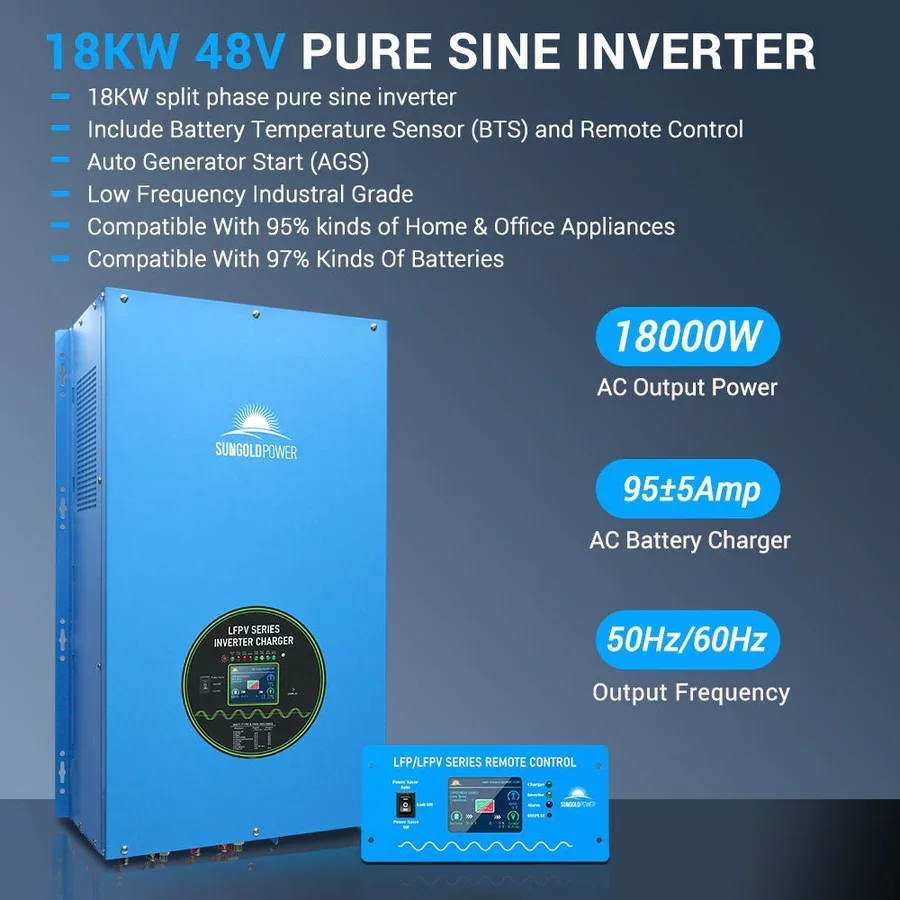

18kw Transformer Inverter Features
SGR-18K20E

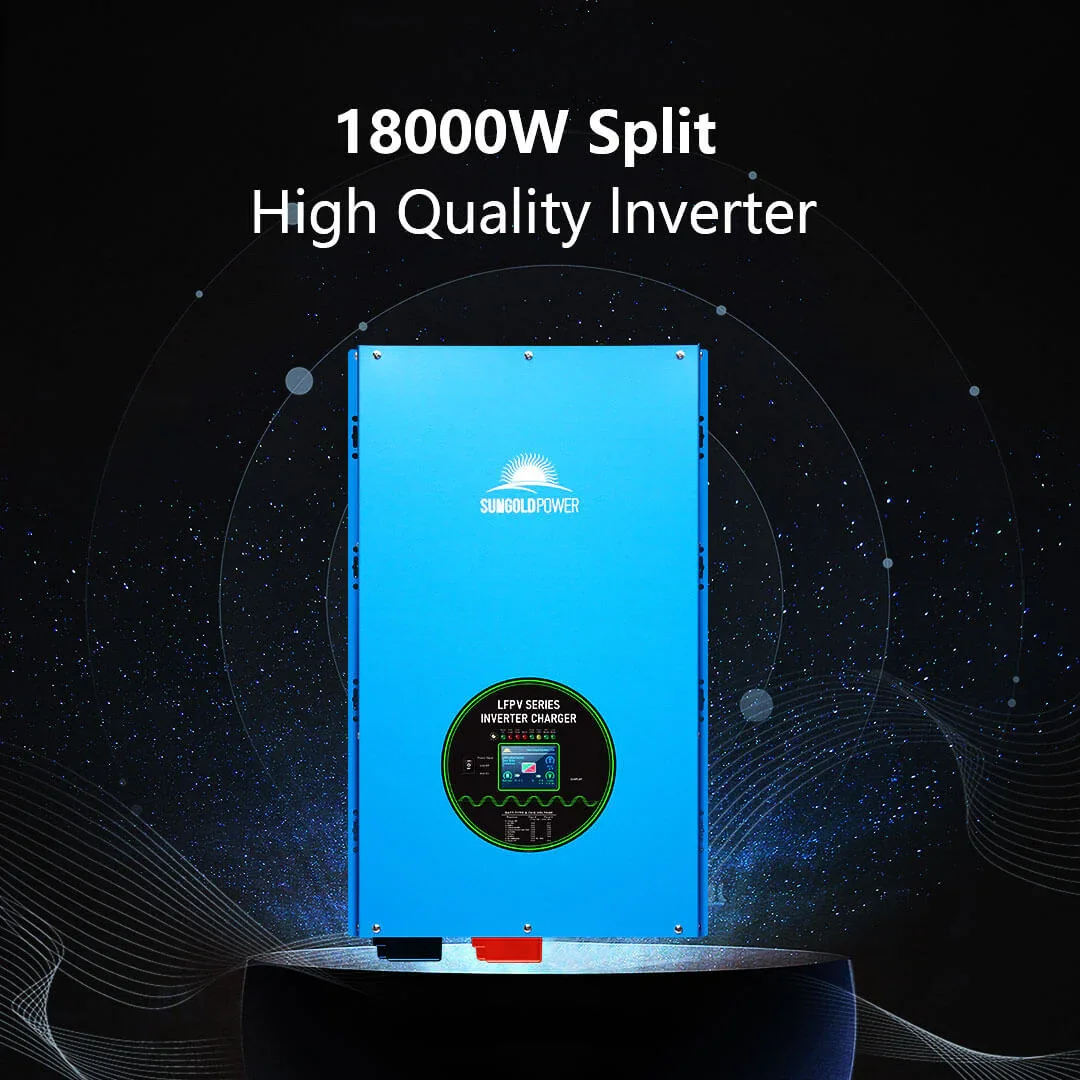

18KW Inverter
SGR-18K20E

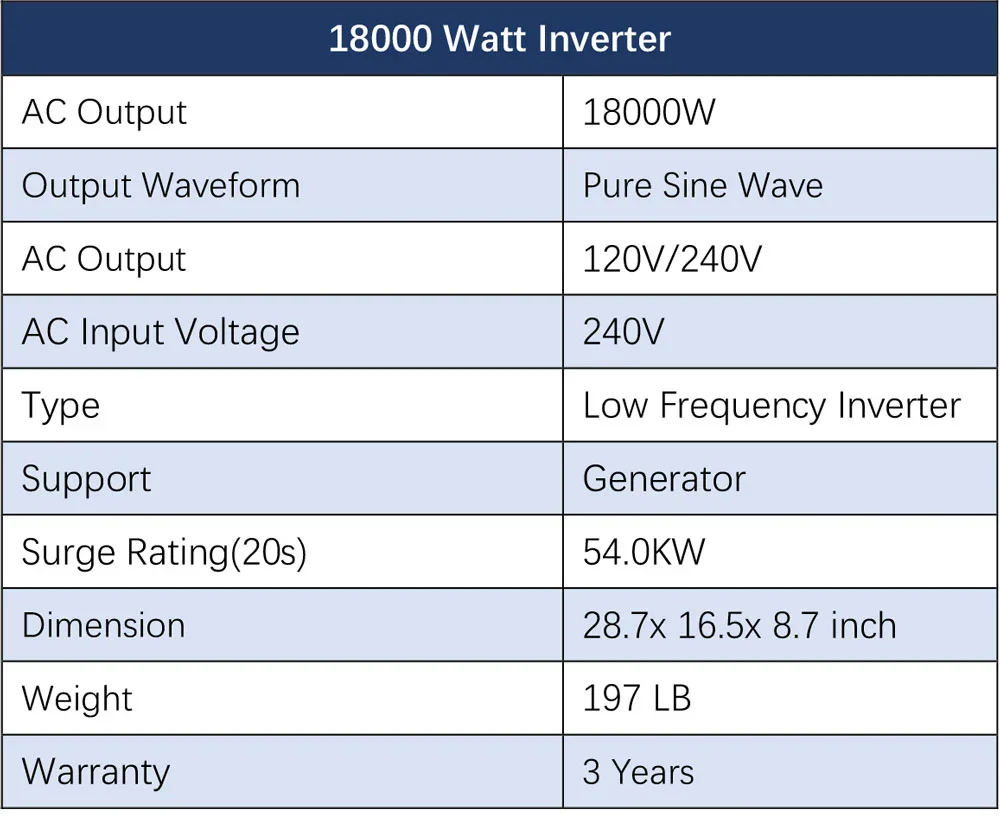

18KW Transformer Inverter Spec Sheet
SGR-18K20E

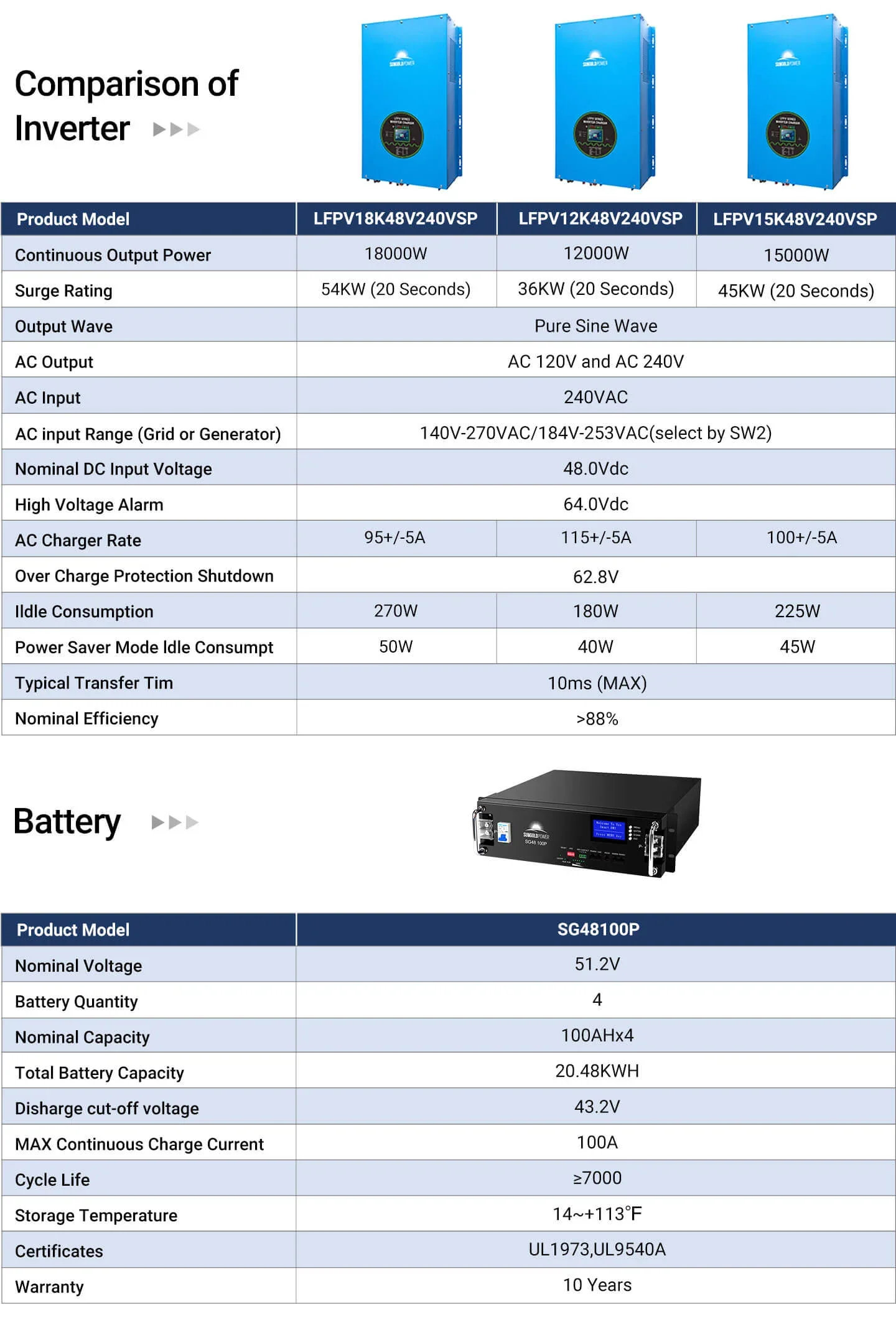

LFPV12-15-18KW-INVERTER Comparison Chart
Inverter Comparison Chart

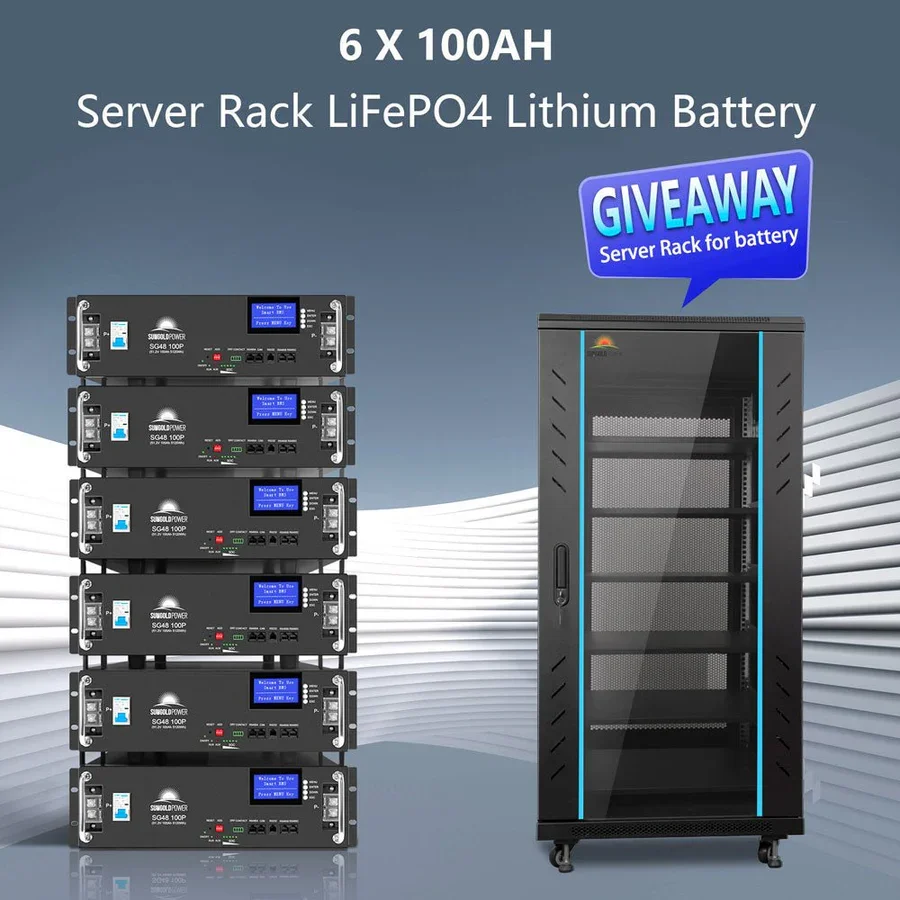

SGR-18K20E & 15K20E - Six Server Rack Batteries with Enclosed Battery Cabinet
Included with SGR-18K20E & 15K20E

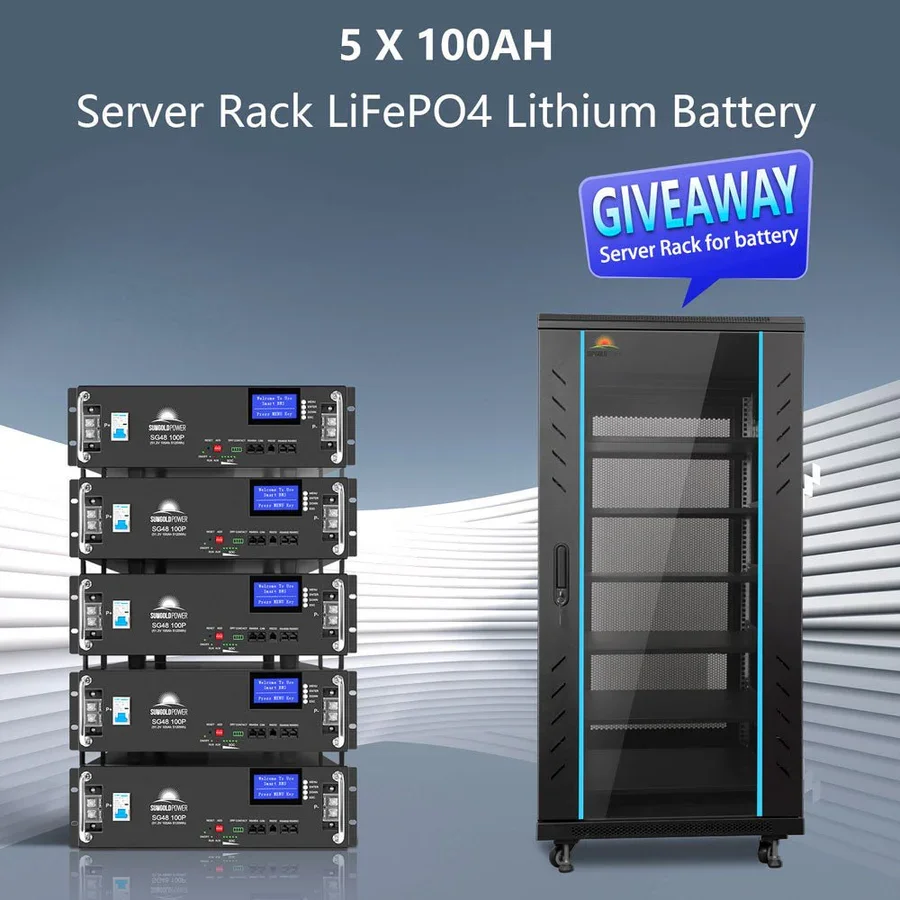

SGR-12K20E - Five Server Rack Batteries with Enclosed Battery Cabinet.webp
Included with SGR-12K20E

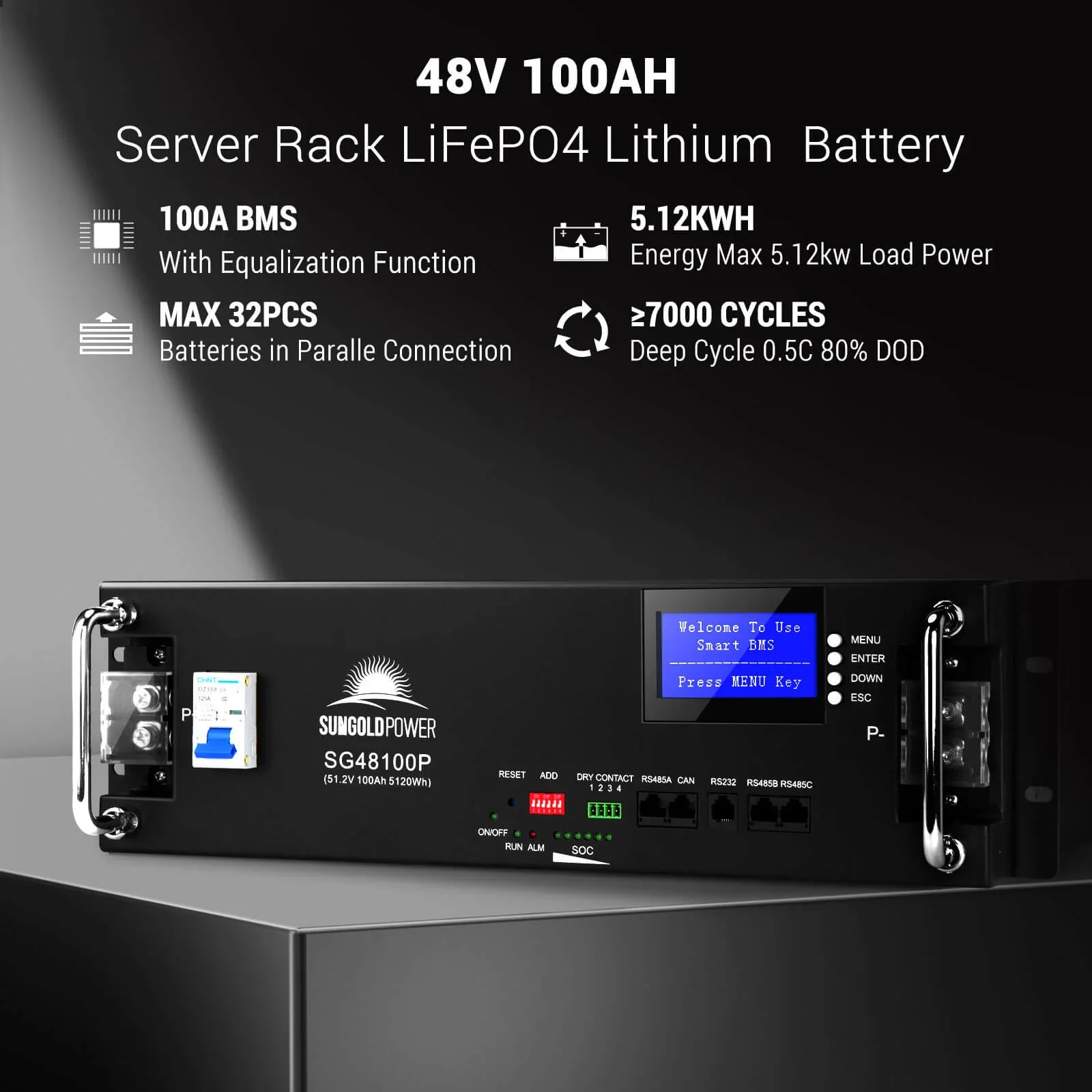

48V 100AH Server Rack Battery

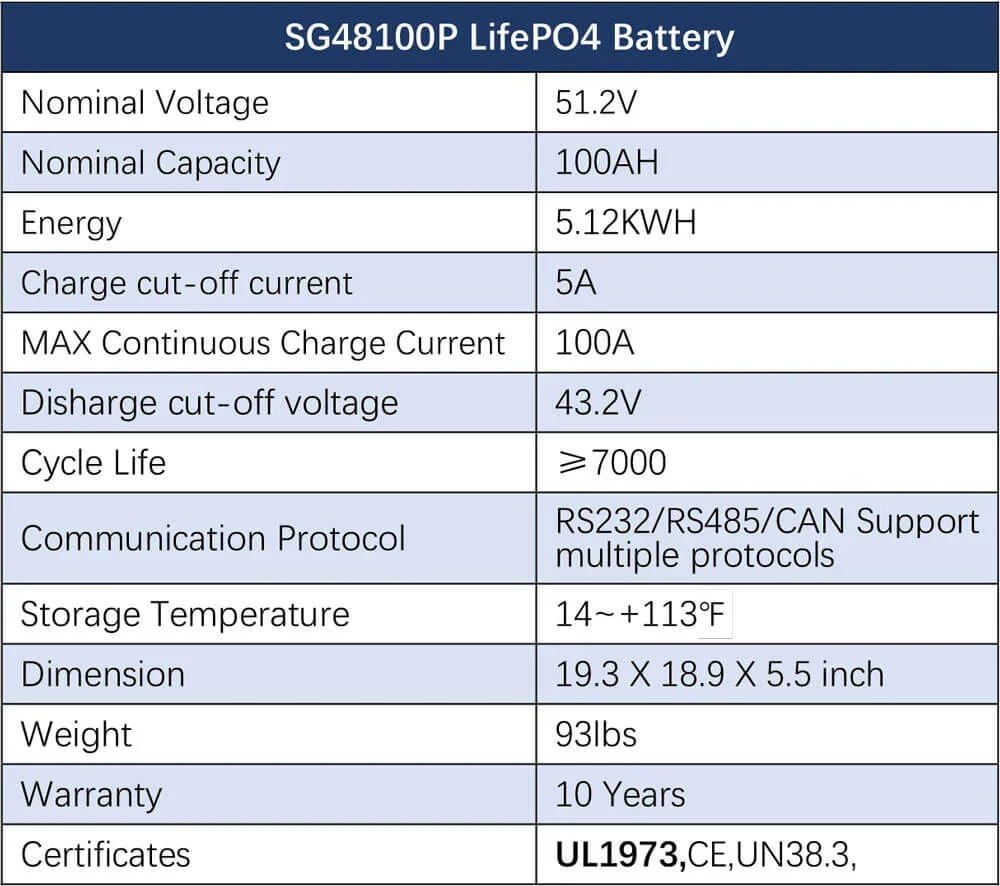

48V 100AH Server Rack Battery Specification Sheet

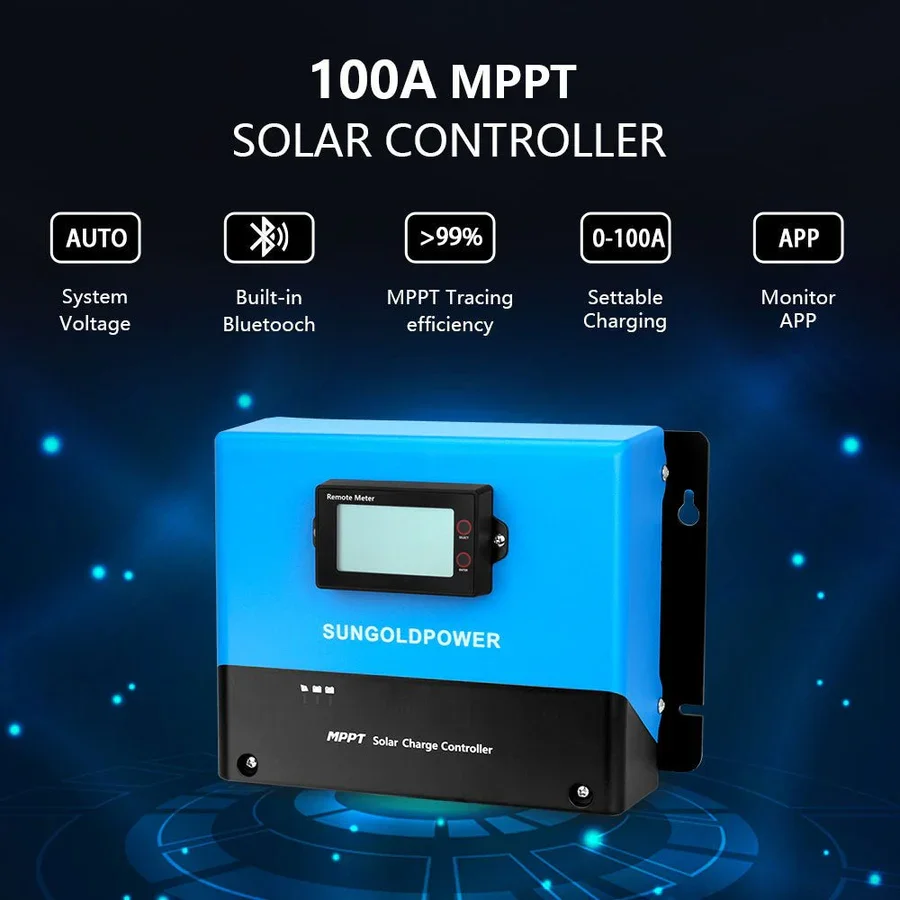

100A MPPT Charge Controller Features

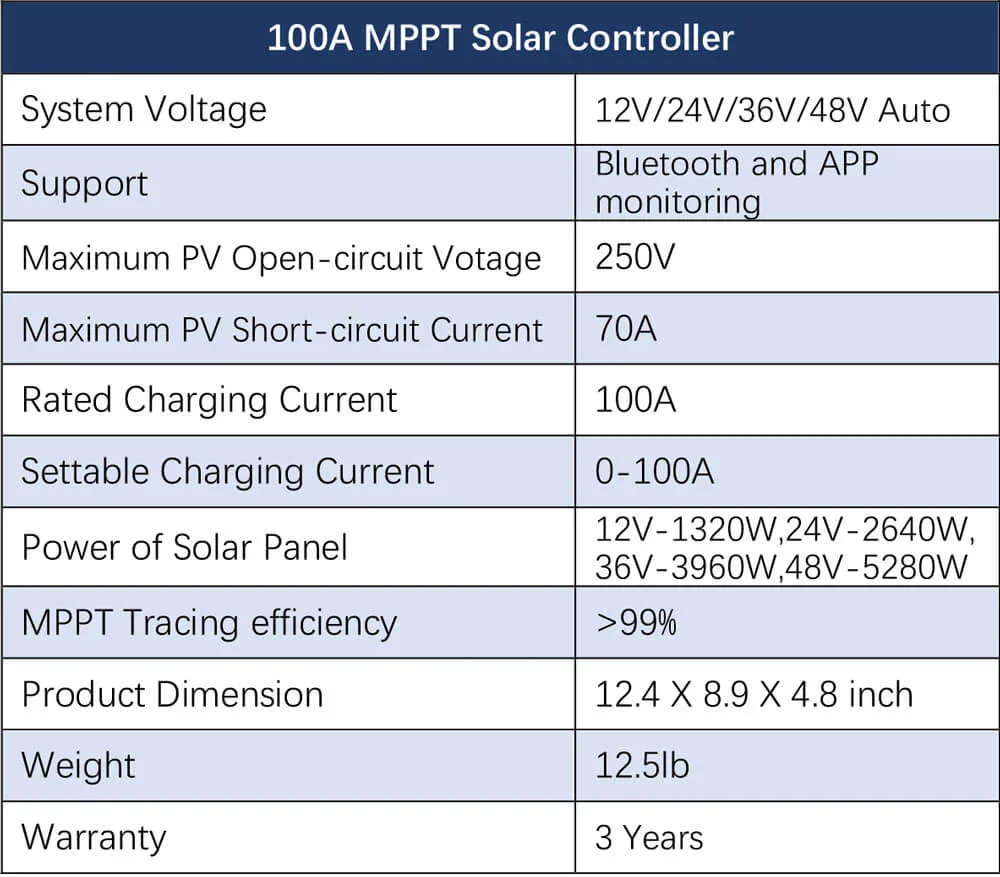

100A MPPT Charge Controller Specification Sheet

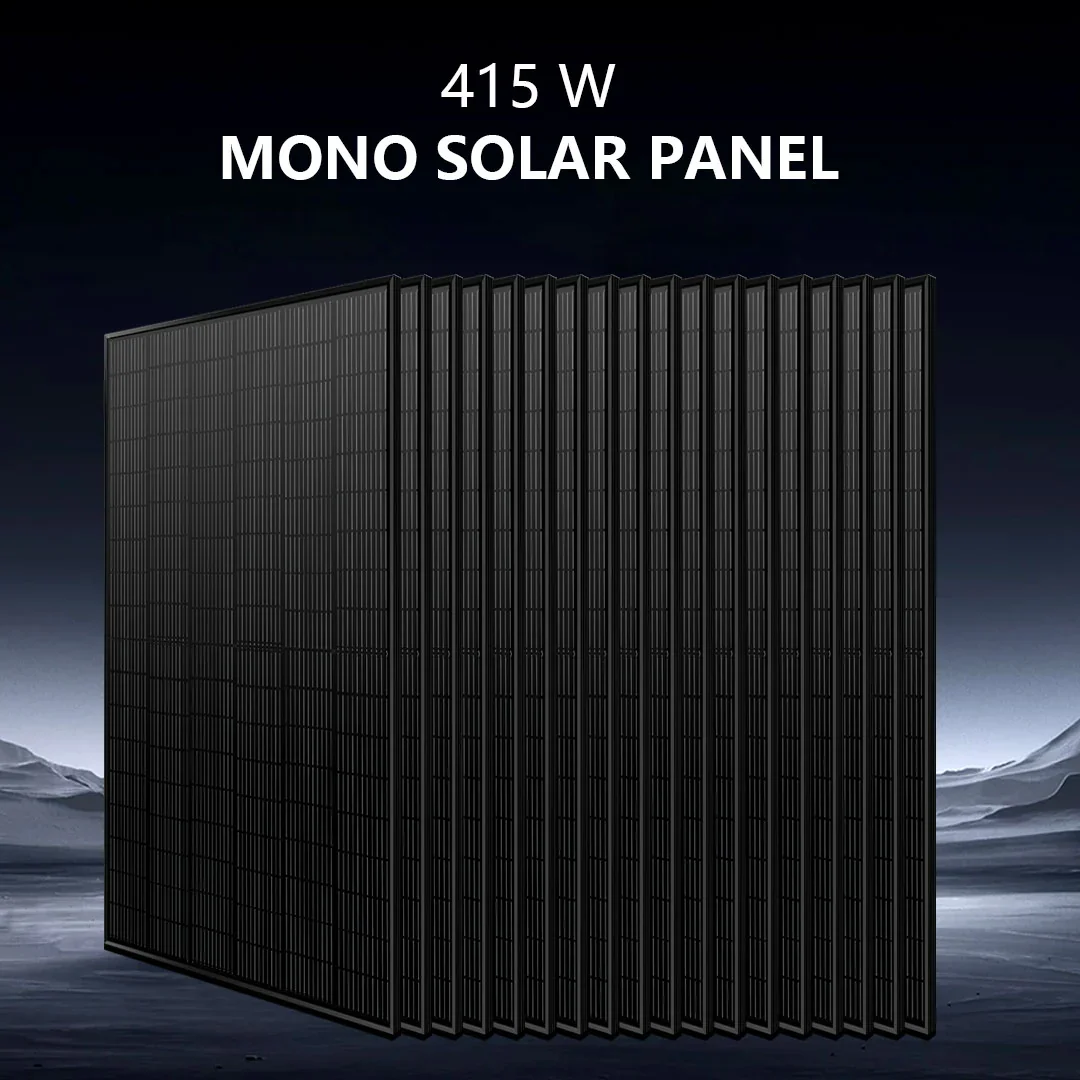

Multiple 415w Mono Solar Panels

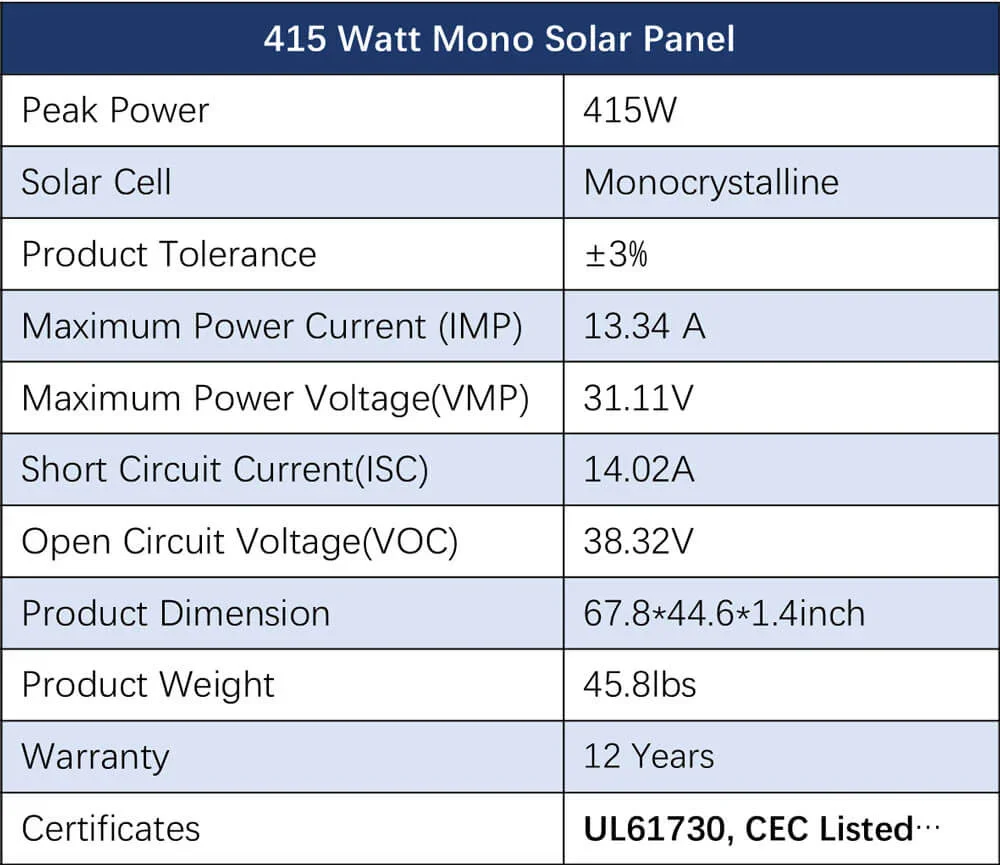

415 Watt SunGoldPower Mono Solar Panel Specification Sheet

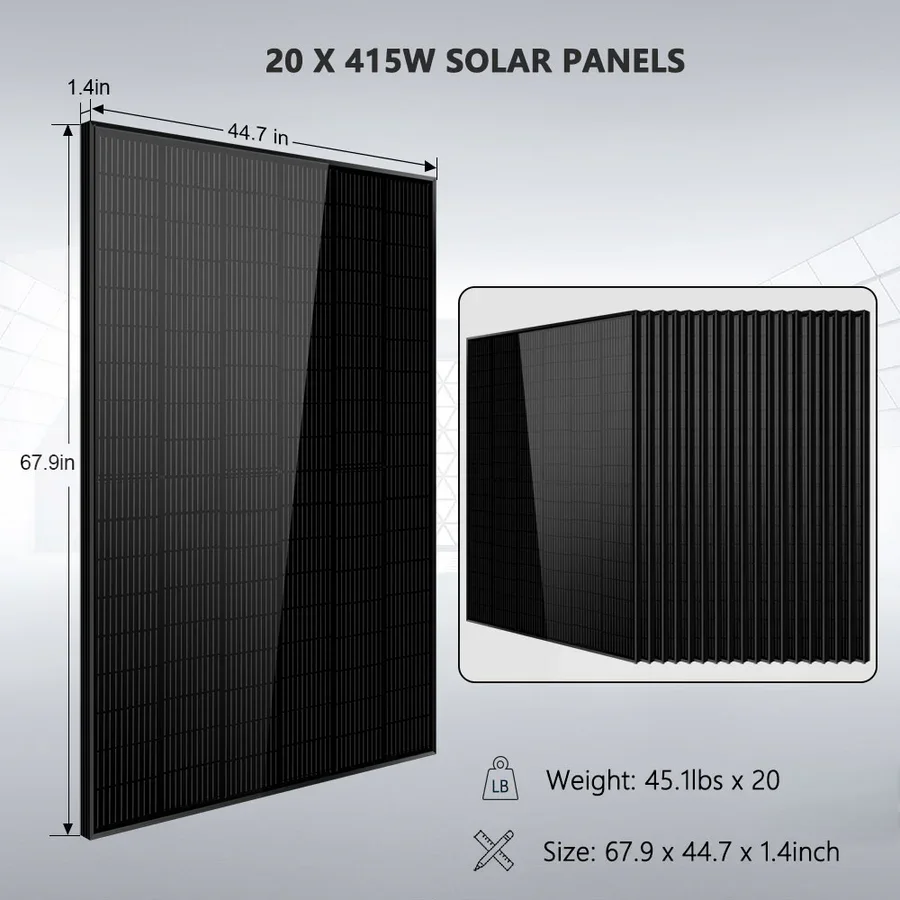

20x 415W Solar Panels Included with SGR-18K20E & 15K20E
Included with SGR-18K20E & 15K20E
12x 415w Solar Panels Included with SGR-12K20E.webp
Included with SGR-12K20E
SGR-18K20E Flow Chart of Power
